Case studies: Production line for different dairy products


Customer Customer

CALIDAD PASCUAL S.A., founded over 50 years ago and one of the largest dairy companies in Spain, their operations involve preparing and packaging milk and derivative products.

Project Project

They needed a line to produce different dairy products.

Production line for different dairy products
  • Production line for different dairy products
  • Production line for different dairy products
  • Production line for different dairy products
  • Production line for different dairy products

INOXPA can offer the complete solution.

  • Production line for different dairy products
  • Production line for different dairy products
  • Production line for different dairy products
  • Production line for different dairy products

INOXPA can offer the complete solution.

Why INOXPA? Why INOXPA?

One of the main reasons is because INOXPA can offer a complete solution.

Good value for money is another important reason.


Installation characteristics Installation characteristics

The line was implemented in close collaboration with the customer, INOXPA supplied the new processing equipment and several valve manifolds, including:



- A solid/liquid blender.

- Solids feeder systems (Big-bag / bag dump station)

- A dairy product pasteuriser.

- A dairy product temperature controller.

- Valve manifolds for transporting raw materials and the end product.

- Pumps and valves to complete the line.

Special features Special features

Mixing equipment

This equipment is commonly used for this kind of dairy processes, enabling adding solids by vacuum to create the blend, recirculating in a larger volume tank.

In this case, the mixing system mainly comprises a tank under vacuum, with liquids pumped in and the level kept constant using a load cell and a modulating valve, while the liquid is extracted using another pump set to a predetermined flow rate.

The liquid portion is preheated prior to reaching the mixing equipment to make mixing the product easier, then the resulting mix is cooled again to limit any loss of the product’s properties.

Solids are added in vacuum to the blender using a big-bag unloading station with weight control to set the amount of solids required by the recipe, as well as a bag dump station where the pre-weighed ingredients are already added.

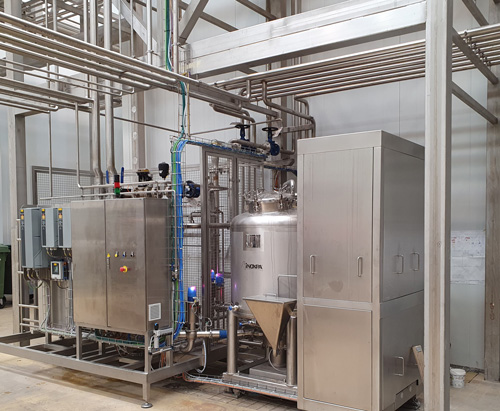

Big-bag unloading station

The big-bag unloading station has a massaging system and a bag cutting system in order to avoid products from spilling from the bags and to make it easier for operatives to manually close the big-bag.

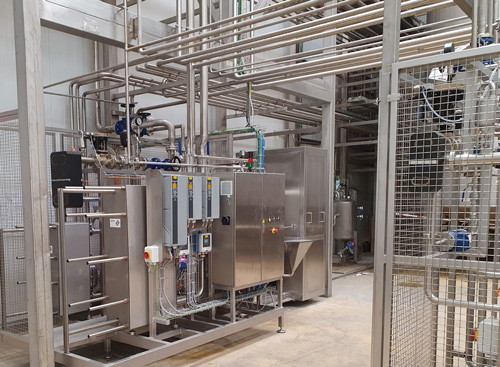

Heat treatment

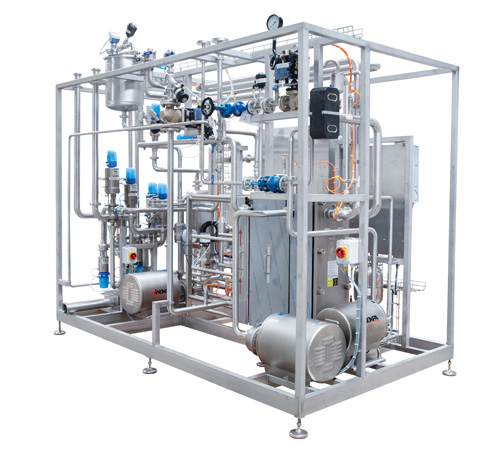

The supplied heat treatment equipment comprises a pasteuriser and a heater or temperature controller at a low temperature, which improves the product conditions during its final phase. The fully automatic pasteurising equipment is self-cleaning and  uses plates and comes with a booster pump and pressure controls.

Valve manifold

The valve manifolds include mixproof valves, with welded housings and AS-i control tops. Some of the supplied valves have mixed housings of different sizes.
