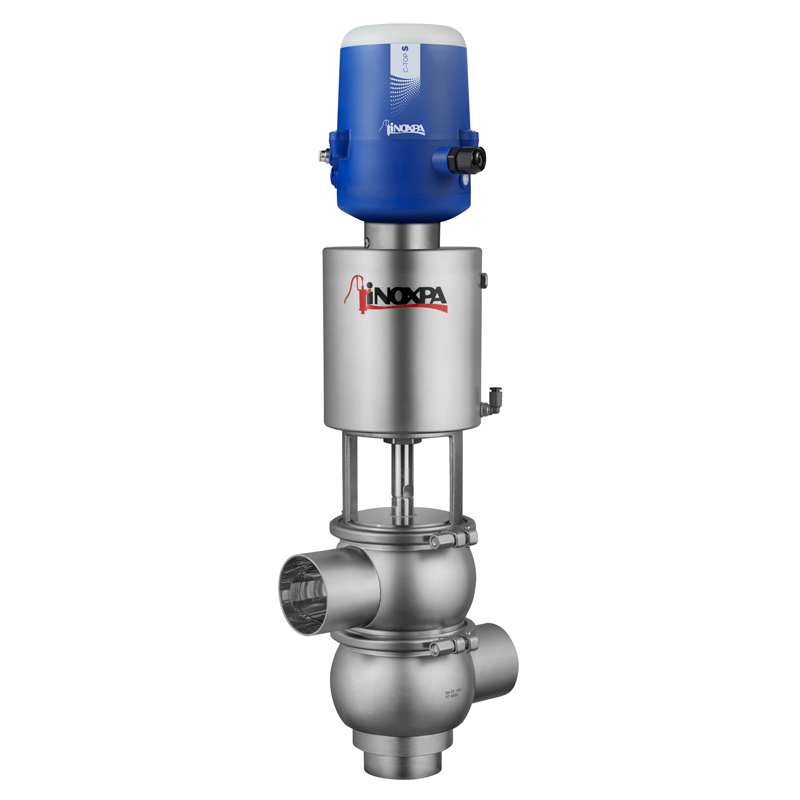

INNOVA K Divert Single Seat Valve

  • Divert Single Seat Valve
  • Divert Single Seat Valve
  • Divert Single Seat Valve
  • Divert Single Seat Valve

The INNOVA K-type valve is a pneumatic divert seat valve designed for hygienic applications.

Request information

INNOVA K Divert Single Seat Valve

Design and features

Hygienic design according to EHEDG.
Gasket with specific profile guarantees reliability under adverse working conditions.
Hygienic design of the gasket ensures optimal cleaning.
Single-acting pneumatic actuator.
The valve can be changed to normally open (NO) by simply reversing the position of the pneumatic actuator.
Easy assembly/disassembly of internal parts by loosening a clamp fastener.
Open lantern allows visual inspection of shaft sealing.
360º adjustable body.
The valve is authorized to carry 3-A symbol. Consult the options of the valves authorized to carry 3-A symbol.

Materials

Parts in contact witht the product 1.4404 (AISI 316L)
Other stainless steel parts 1.4301 (AISI 304)
Gaskets in contact with the product EPDM

Surface finish
Internal Bright polish Ra ≤ 0,8 μm
External Matt

Available sizes
DIN EN 10357 serie A DN 25 - DN 100
(previously DIN 11850 series 2)
ASTM A269/270 OD 1’’ - OD 4’’
(corresponds to OD pipe)

Connections
Weld

Documents

Data sheet v.22 (4)
Data sheet (7)
Quick installation guide v.22 (1)
Quick installation guide (1)
Instruction manual v.22 (4)
Instruction manual (7)
3D CAD v.22 (8)
Operating principle
Materials and Options

Parts in contact witht the product 1.4404 (AISI 316L)
Other stainless steel parts 1.4301 (AISI 304)
Gaskets in contact with the product EPDM

Surface finish
Internal Bright polish Ra ≤ 0,8 μm
External Matt

Available sizes
DIN EN 10357 serie A DN 25 - DN 100
(previously DIN 11850 series 2)
ASTM A269/270 OD 1’’ - OD 4’’
(corresponds to OD pipe)

Connections
Weld

Documents
Document № 10.240.33.04ES
Title Válvula de Simple Asiento de Desvío INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.04EN
Title Divert Single Seat Valve INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.04FR
Title Vanne à Simple Siège de Dérivation INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.04RU
Title Распределительный Односедельный Клапан INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02ES
Title Válvula de Simple Asiento de Desvío INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02EN
Title Divert Single Seat Valve INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02FR
Title Vanne à Simple Siège de Dérivation INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02IT
Title Valvola di Cambio a Singola Sede INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02DE
Title Einsitventil – Wechselventil INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02RU
Title Распределительный Односедельный Клапан INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.33.02CN
Title 换向单座阀 INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.30.12MU
Title Guía rápida de instalación - Quick installation guide - Guide d’installation rapide - Краткое руководство по монтажу INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.30.04MU
Title Guía rápida de instalación - Quick installation guide - Guide d’installation rapide - Краткое руководство по монтажу INNOVA K
File type .pdf
    Download
    • E-mail
Document № 10.240.30.11ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO VÁLVULA DE SIMPLE ASIENTO INNOVA N / K
File type .pdf
    Download
    • E-mail
Document № 10.240.30.11EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS SINGLE SEAT VALVE INNOVA N / K
File type .pdf
    Download
    • E-mail
Document № 10.240.30.11FR
Title INSTRUCTIONS RELATIVES À L’INSTALLATION, À LA MISE EN SERVICE ET À LA MAINTENANCE VANNE À SIMPLE SIÈGE INNOVA N / K
File type .pdf
    Download
    • E-mail
Document № 10.240.30.11RU
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ОБСЛУЖИВАНИЮ И УХОДУ ОДНОСЕДЕЛЬНЫЙ КЛАПАН INNOVA N / K
File type .pdf
    Download
    • E-mail
Document № /10.240.30.03ES_revA
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO VÁLVULA INNOVA SIMPLE ASIENTO - TIPO N / K
File type .pdf
Summary La válvula de simple asiento de tipo N es una válvula de cierre que se utiliza para abrir o cerrar secciones de una tubería. La válvula de simple asiento de tipo K es una válvula de cambio para desviar el producto.
    Download
    • E-mail
Document № 10.240.30.07ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO VÁLVULA INNOVA SIMPLE ASIENTO - TIPO N / K - ANEXO ATEX
File type .pdf
    Download
    • E-mail
Document № 10.240.30.03EN_revA
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS INNOVA SINGLE SEAT VALVE - N/K TYPE
File type .pdf
Summary The type N single-seat valve is a shut-off valve that is used to open or close sections of a pipe. The type K single-seat valve is a divert valve to divert the product.
    Download
    • E-mail
Document № 10.240.30.07EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTION INNOVA SINGLE SEAT VALVE - N/K TYPE - ANNEX ATEX
File type .pdf
    Download
    • E-mail
Document № 10.240.30.03FR_revA
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D'ENTRETIEN VANNE INNOVA À SIMPLE SIÈGE - TYPE N/K
File type .pdf
Summary La vanne à simple siège de type N est une vanne a clapet utilisée pour ouvrir ou fermer des sections d'un conduit. La vanne à simple siège de type K est une vanne de dérivation permettant de dévier le produit.
    Download
    • E-mail
Document № 10.240.30.07FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D'ENTRETIEN VANNE INNOVA À SIMPLE SIÈGE - TYPE N/K - ANNEXE ATEX
File type .pdf
    Download
    • E-mail
Document № 10.240.30.03RU_revA
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ ОДНОСЕДЕЛЬНЫЙ КЛАПАН INNOVA N / K
File type .pdf
Summary В данном руководстве приведена информация о приемке, установке, функционировании, сборке, разборке и обслуживании клапана INNOVA N и INNOVA K.
    Download
    • E-mail
Document № INNOVA K E ACT_AS NC
File type .rar
    Download
    • E-mail
Document № INNOVA K E ACT_AS NC & C-TOP S
File type .rar
    Download
    • E-mail
Document № INNOVA K F ACT_AS NC
File type .rar
    Download
    • E-mail
Document № INNOVA K F ACT_AS NC & C-TOP S
File type .rar
    Download
    • E-mail
Document № INNOVA K G ACT_AS NC
File type .rar
    Download
    • E-mail
Document № INNOVA K G ACT_AS NC & C-TOP S
File type .rar
    Download
    • E-mail
Document № INNOVA K H ACT_AS NC
File type .rar
    Download
    • E-mail
Document № INNOVA K H ACT_AS NC & C-TOP S
File type .rar
    Download
    • E-mail
