PROLAC HCP-WFI Hygienic Centrifugal Pump

  • Hygienic Centrifugal Pump
  • Hygienic Centrifugal Pump
  • Hygienic Centrifugal Pump
  • Hygienic Centrifugal Pump
  • Hygienic Centrifugal Pump
  • Hygienic Centrifugal Pump

Higher standards are required in the pharmaceutical industry than in the food industry to pumping products like purified water (PW), water for injection (WFI), etc.

Request information

PROLAC HCP-WFI Hygienic Centrifugal Pump

Operating principle

PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression. The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs. The pump is EHEDG certified,it is especially designed for CIP/SIP without disassembly.

Design and features

Using the HCP centrifugal pumps as a base, we have designed the HCP-WFI model, which adds the most popular options in pharmaceutical applications to the PROLAC HCP pump. HCP pumps are sanitary grade centrifugal pumps designed in  accordance with EHEDG recommendations. The HCP can easily be cleaned by using chemical products (CIP) and suitable for steam sterilisation (SIP).

Sanitary grade mechanical seal, according to EHEDG standards, with hard faces avoids the possibility of dust traces contaminating the product being pumped.

Supplements to the basic configuration of a PROLAC HCP pump:

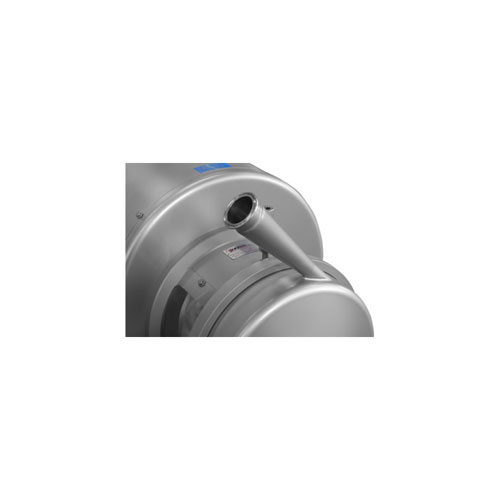

- The discharge port orientated to 45º to evacuate air bubbles that could remain in the upper part of the pump housing.
- Surface finish of the parts in contact with the product: Ra<0.5 μm.
- Simple mechanical seal: TuC/SiC.
- FDA and USP Class VI certified EPDM O-rings.
- ½” CLAMP drain port in the pump housing.
- CLAMP OD connections.
- Materials certificate 3.1 (according to EN10204).
- Gasket certificate 2.1 (according to EN10204).
- Roughness certificate.

Options

Vertical discharge port (0º).

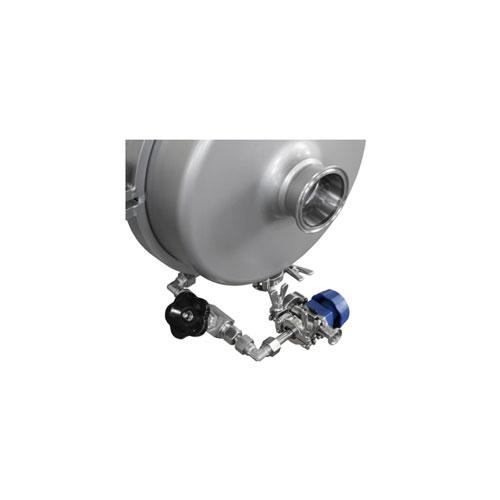

Double seal and cooling circuit with the liquid being pumped, with the possibility of adding different accessories (pipework, check valve, diaphragm valve, etc.).
Drainage valve with various possible configurations (manual diaphragm valve, automatic diaphragm valve, stainless steel bonnet, plastic bonnet etc.).
Hydraulic test certificate with guarantee.
Electro-polished finish.

Documents

Data sheet (5)
Instruction manual (6)
Operating principle

PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression. The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs. The pump is EHEDG certified,it is especially designed for CIP/SIP without disassembly.

Materials and Options

Vertical discharge port (0º).
Double seal and cooling circuit with the liquid being pumped, with the possibility of adding different accessories (pipework, check valve, diaphragm valve, etc.).
Drainage valve with various possible configurations (manual diaphragm valve, automatic diaphragm valve, stainless steel bonnet, plastic bonnet etc.).
Hydraulic test certificate with guarantee.
Electro-polished finish.

Documents
Document № 01.030.33.02ES
Title Prolac HCP-WFI: Bombas centrífugas para aplicaciones farmacéuticas
File type .pdf
    Download
    • E-mail
Document № 01.030.33.02EN
Title Prolac HCP-WFI: Centrifugal pumps for pharmaceutical applications
File type .pdf
    Download
    • E-mail
Document № 01.030.33.02FR
Title Prolac HCP-WFI: Pompes centrifuges pour applications pharmaceutiques
File type .pdf
    Download
    • E-mail
Document № 01.030.33.02IT
Title Prolac HCP-WFI: Pompe centrifughe per applicazioni farmaceutiche
File type .pdf
    Download
    • E-mail
Document № 01.030.33.02RU
Title Prolac HCP-WFI: Центробежные насосы для фармацевтического применения
File type .pdf
    Download
    • E-mail
Document № 01.030.30.05ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO PROLAC HCP
File type .pdf
Summary Este manual contiene información sobre la recepción, instalación, operación, montaje, desmontaje y mantenimiento para la bomba PROLAC HCP.
    Download
    • E-mail
Document № 01.030.30.03ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO PROLAC HCP - ANEXO ATEX
File type .pdf
    Download
    • E-mail
Document № 01.030.30.05EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PROLAC HCP
File type .pdf
Summary This manual contains information regarding the reception, installation, operation, assembly, disassembly and maintenance of the PROLAC HCP pump.
    Download
    • E-mail
Document № 01.030.30.03EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PROLAC HCP - ANNEX ATEX
File type .pdf
    Download
    • E-mail
Document № 01.030.30.05FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN PROLAC HCP
File type .pdf
Summary Ce manuel contient des informations sur la réception, l'installation, l'utilisation, le montage, le démontage et l'entretien de la pompe PROLAC HCP.
    Download
    • E-mail
Document № 01.030.30.03FR
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PROLAC HCP - ANNEX ATEX
File type .pdf
    Download
    • E-mail
