ASPIR Side Channel Pump

  • Side Channel Pump
  • Side Channel Pump
  • Side Channel Pump
  • Side Channel Pump
  • Side Channel Pump
  • Side Channel Pump

The Aspir pump is a sanitary side-channel self-priming pump suitable for use in the food-processing, pharmaceutical and chemical industries. It is specially designed for pumping materials containing air or gas, and it can also be used for negative suction with prior priming as well as with filtration equipment. It can be used with wine, oil, syrups, volatile products such as alcohol, acetone and other solvents, or with products at temperatures close to boiling point. However, the main use of this pump is for CIP return.

Request information

ASPIR Side Channel Pump

Operating principle

The impeller is housed between the suction casing and the diffuser, it rotates in conjunction with the pump shaft. Due to this arrangement, the rotation of the impeller and the position of the side channel, negative pressure is created inside the suction casing, which generates the suction force of the pump. At the same time, the fluid receives energy in the form of kinetic energy and pressure energy, and this impels it through the discharge casing.

Design and features

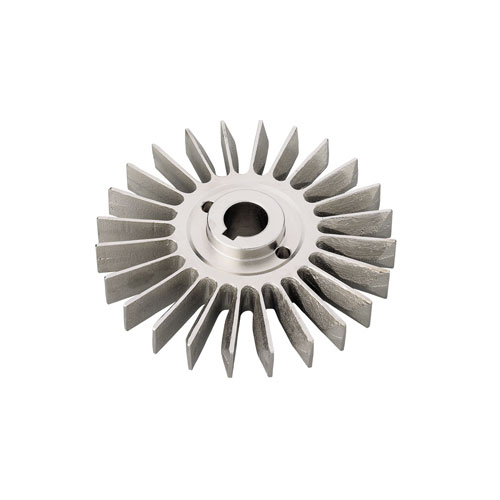

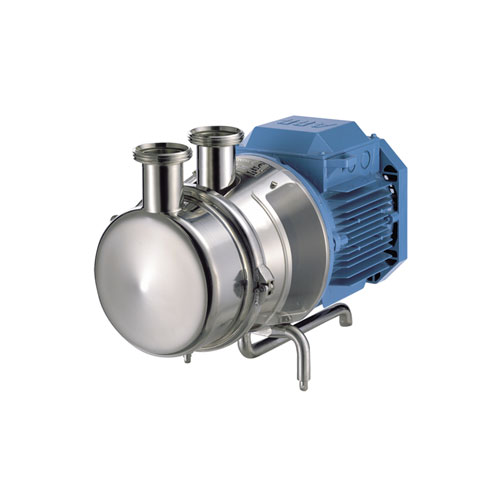

Aspir is a range of centrifugal pumps made of a cold-formed stainless steel discharge casing, cast sainless steel suction casing, diffuser and lantern, star-shaped fixed impeller, and an external mechanical seal that prevents any contact of the spring with the product.
The motor complies with the IEC standards, it is protected with a stainless steel shroud made of stainless steel sheet and provided with the height adjustable hygienically designed legs.

Materials

Parts in contact with the product Stainless steel AISI 316L (1.4404)
Other steel parts Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product EPDM

Mechanical seal
Rotary part Silicon carbide (SiC)
Stationary part Carbon (C)
Gaskets EPDM

Surface finish
External Matt
Internal Bright polish except for electropolished impeller

Options

Heavy-duty impeller.
Pump casing with drain port.
Different types of connections.
SiC/SiC mechanical seal.
Gaskets: FPM and PTFE.
Motor with other voltages and frequencies.
Motor for explosive atmospheres or with enhanced safety level.
ATEX certification.
Internal flow by-pass.

Documents

Data sheet (8)
Instruction manual (7)
Performance curves (1)
Operating principle

The impeller is housed between the suction casing and the diffuser, it rotates in conjunction with the pump shaft. Due to this arrangement, the rotation of the impeller and the position of the side channel, negative pressure is created inside the suction casing, which generates the suction force of the pump. At the same time, the fluid receives energy in the form of kinetic energy and pressure energy, and this impels it through the discharge casing.

Materials and Options

Parts in contact with the product Stainless steel AISI 316L (1.4404)
Other steel parts Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product EPDM

Mechanical seal
Rotary part Silicon carbide (SiC)
Stationary part Carbon (C)
Gaskets EPDM

Surface finish
External Matt
Internal Bright polish except for electropolished impeller

Heavy-duty impeller.
Pump casing with drain port.
Different types of connections.
SiC/SiC mechanical seal.
Gaskets: FPM and PTFE.
Motor with other voltages and frequencies.
Motor for explosive atmospheres or with enhanced safety level.
ATEX certification.
Internal flow by-pass.

Documents
Document № FT.Aspir.2_ES
Title Bomba de Canal Lateral ASPIR
File type .pdf
Summary La bomba Aspir es una bomba autoaspirante de canal lateral que se puede utilizar en la industria alimentaria, farmacéutica y química.
    Download
    • E-mail
Document № FT.Aspir.2_EN
Title Side Channel Pump ASPIR
File type .pdf
Summary The Aspir pump is a sanitary side-channel self-priming pump suitable for use in the food-processing, pharmaceutical and chemical industries.
    Download
    • E-mail
Document № FT.Aspir.2_FR
Title Pompe Auto-aspirante ASPIR
File type .pdf
Summary La pompe Aspir est une pompe auto-aspirante à canal latéral destinée à l'industrie alimentaire, pharmaceutique et chimique.
    Download
    • E-mail
Document № FT.Aspir.2_IT
Title Pompa a Canale Laterale ASPIR
File type .pdf
Summary La pompa Aspir è una pompa autoadescante a canale laterale che si può utilizzare nell'industria alimentare, farmaceutica e chimica.
    Download
    • E-mail
Document № FT.Aspir.2_PT
Title Bomba de Canal Lateral ASPIR
File type .pdf
Summary A ASPIR é uma bomba autoescorvante de canal lateral que pode ser usada nas indústrias alimentar, farmacêutica e química.
    Download
    • E-mail
Document № FT.Aspir.2_DE
Title Selbstansaugende Kreiselpumpe ASPIR
File type .pdf
Summary Die Aspir Pumpe ist eine selbstansaugende Seitenkanalpumpe, die in der Lebensmittel-, der pharmazeutischen- und chemischen Industrie einsetzbar ist.
    Download
    • E-mail
Document № FT.Aspir.2_RU
Title Вихревой Насос ASPIR
File type .pdf
Summary Модель Aspir представляет собой санитарный вихревой самовсасывающий насос, предназначенный для использования в пищевой, фармацевтической и химической промышленностях.
    Download
    • E-mail
Document № FT.Aspir.2_CN
Title 液环泵 ASPIR
File type .pdf
Summary Aspir 系列卫生级液环泵广泛应用于食品加工过程，制药和化工等领域。
    Download
    • E-mail
Document № 01.400.30.09ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO: ASPIR
File type .pdf
    Download
    • E-mail
Document № 01.400.30.07ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO ASPIR - ANEXO ATEX
File type .pdf
    Download
    • E-mail
Document № 01.400.30.09EN
Title INSTALLATION, SERVICE AND, MAINTENANCE INSTRUCTIONS: ASPIR
File type .pdf
    Download
    • E-mail
Document № 01.400.30.07EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS ASPIR - ANNEX ATEX
File type .pdf
    Download
    • E-mail
Document № 01.400.30.09FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET DE MAINTENANCE ASPIR
File type .pdf
    Download
    • E-mail
Document № 01.400.30.07FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN ASPIR - ANNEXE ATEX
File type .pdf
    Download
    • E-mail
Document № 01.400.30.09RU.pdf
Title ПАСПОРТ И ИНСТРУКЦИЯ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ТЕХНИЧЕСКОМУ ОБСЛУЖИВАНИЮ ASPIR
File type .pdf
Summary Насос ASPIR это самовсасывающий насос с обводным каналом, предназначенный для использования в пищевой, фармацевтической и химической промышленностях.
    Download
    • E-mail
Document № 01.400.12.0011
Title CURVAS CARACTERÍSTICAS. PERFORMANCE CURVES. ASPIR
File type .pdf
Summary Área de selección / Performance chart
    Download
    • E-mail
